Additional Machines

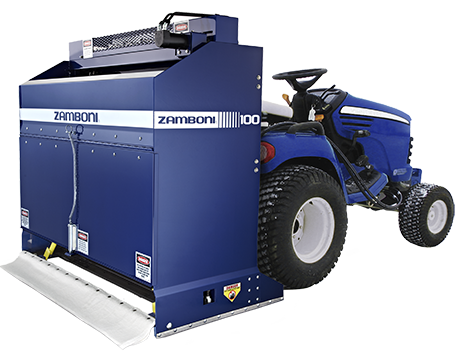

Zamboni Model 100

100

















The Zamboni Model 100 is a miniature unit which is approximately 1/10th the size of the 500 Series machines. It is ideally suited for small rinks with surfaces of 1,000 to 3,000 square feet. Its design adapts to several popular garden tractors. The Model 100 shaves the ice, picks up the shavings and lays down a fresh sheet of ice making water in one efficient operation.

Specifications

Snow Tank 10 cu. ft.
Overall Height 55 in.
Overall Length 114 in.
Overall Width 51 in.
Ice Making Water Tank 20 USG
Blade 48 in.

Zamboni Model 200

















The Zamboni Model 200 is a tractor-pulled unit with a 77” blade – the same width as the 500 Series machines. The Model 200 is designed with the operator in mind and features a control console within reach and easy access to the blade and other adjustable components. It can be attached to any 3-point hitch tractor with an adequate capacity.

Specifications

Snow Tank 50 cu. ft.
Overall Height 74 in.
Overall Length 56 in.
Overall Width 79.5 in.
Ice Making Water Tank 112 USG
Blade 77 in. x 1/2 in. x 5 in.

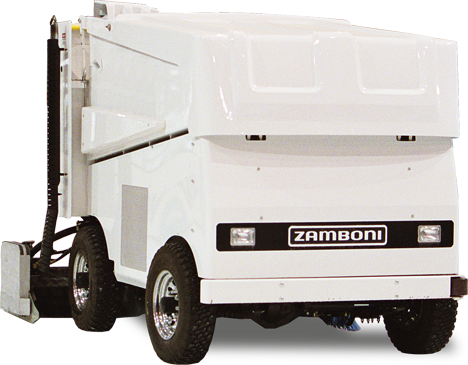

Zamboni Model 700



















With its 96” blade, the Zamboni Model 700 is ideal for large surfaces requiring a powerful resurfacer with maximum capacities. The snow tank provides an additional 25% of snow collection space and with nearly double the water supply the Model 700 provides the largest capacities available in the industry.

Specifications

Snow Tank 125 cu. ft.
Overall Height 159 in.
Overall Length 159 in.
Overall Width 102 in.
Ice Making Water Tank 400 USG
Blade 1/2 in. x 5 in. x 96 in.
